1800 Jingshan five-layer corrugated cardboard production line configuration single
Product Name:
1800 Jingshan five-layer corrugated cardboard production line configuration single
Model: :
www.zt-usedmachine.com
:
:


Product Description:

1800 Jingshan five-layer corrugated cardboard production line configuration single

Usage is minimal



name

quantity

Main image

disposition

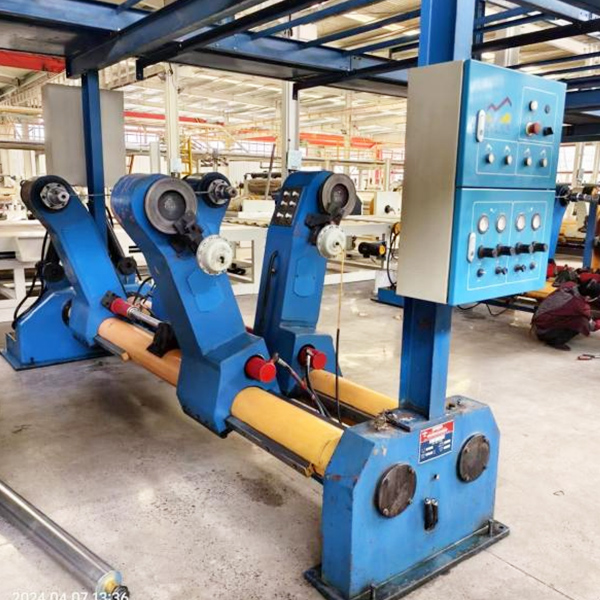

Hydraulic paper holder



5 units


Full hydraulic control,   expansion chuck, pneumatic brake.

Ground rail trolley

6 meters

10 sets


brand new

Floor-mounted   preheating steel



4 units


The diameter of the   preheating cylinder is 900mm, and the angle is electrically wrapped.

Three layers of   preheated steel



1 unit


The diameter of the   preheating cylinder is 9 00mm, and the angle is electrically wrapped.

Adsorption single-sided   corrugator



2 units


B+C corrugated two main   engines, 325mm diameter, tungsten carbide corrugated rollers, universal joint   transmission, electric glue adjustment capacity

Double-layer bridge +   double-layer adsorption and correction



1 set


Two sets of cardboard   hoists

Double-layer cardboard   conveyor bridge + 1 set of double-layer adsorption and deviation correction,   new guardrail, new conveyor belt.

Double-layer gluing   machine



1 unit


Pneumatic paper   pressing, heavy-duty frame, rolls intact, rubber rollers independent rotation   function.

Double-sided machine



1 unit


18 hot plates, new two   large cotton belts, new grinding hot plates, hydraulic adjustment and   lifting.

Thin knife longitudinal cutting and indentation machine





1 unit


Fully   computer-controlled, computerized ordering, 5 knives and 8 lines.



Computerized   cross-cutting machine



1 unit


Computer servo, spiral   knife, speed 150 meters per minute.

Cardboard stacker



1 set


The gantry lifting take-up machine   reaches a certain number of right-angle horizontal outputs, and the paper is   discharged in three sections.

Glue making system



1 set


Three main   tanks, plastic box, glue pump.
